** MAIN FEATURES **

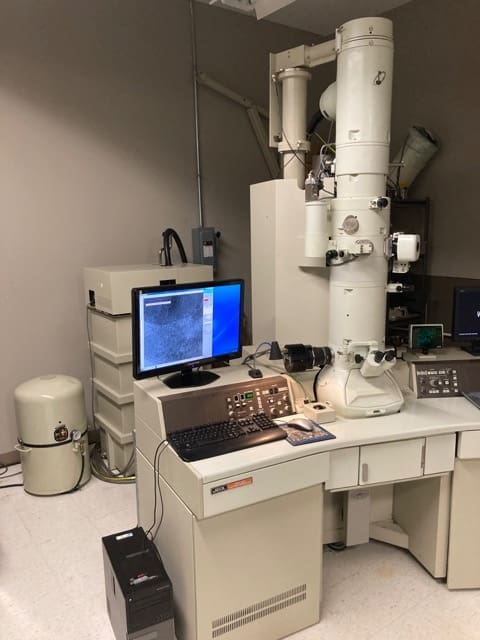

JEOL JEM-2011 Transmission Electron Microscope designed for high-resolution imaging and analysis in materials science, nanotechnology, and biosciences. “Operates at 200 kV and uses a LaB6 electron gun” providing high brightness and stability. System includes AMT CCD camera and EDAX EDS detector. Supplied with chiller and full PC control setup.
** BEAM **
– Type of emitter: “LaB6 filament”
– Acceleration voltage range: “up to 200 kV”
** RESOLUTION **
– Point resolution: “0.23 nm”
– Line resolution: “0.14 nm”
** DETECTORS **
– AMT bottom-mount 2MB CCD camera

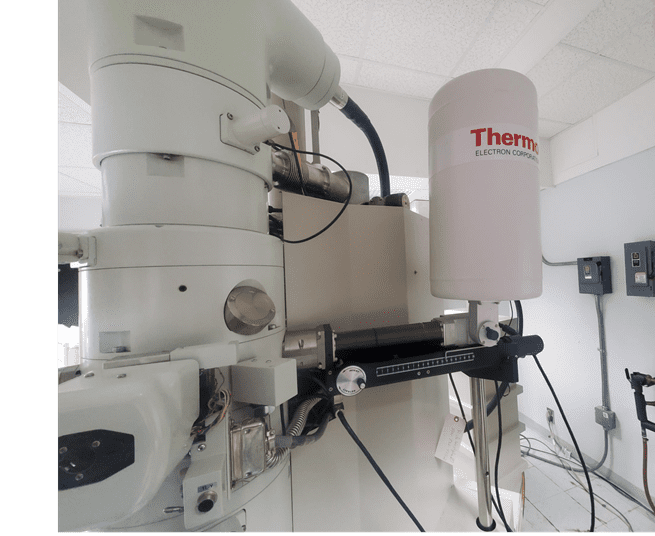

– EDAX horizontal-mount EDS detector with ultra-thin window
– “Scintillator-photomultiplier secondary electron detector (standard)”
** STAGE **
– “Five-axis motorized goniometer stage with ±30° tilt”
** ACCESSORIES **
– HX-150 air-to-air water chiller/recirculator
– Windows-based PC and monitor
** CONDITION **
Fully functional, no issues reported
Totally refurbished before packing
