** MAIN FEATURES **

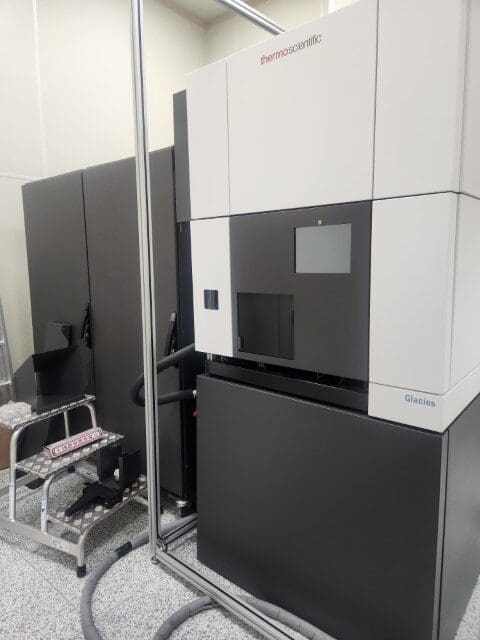

The Thermo Scientific™ Glacios™ Cryo-Transmission Electron Microscope (Cryo-TEM) delivers a complete cryo-EM solution in bioscience. It features 200 kV X-FEG optics, the industry-leading Autoloader for cryogenic sample manipulation, and innovative automation for ease of use.
Sample screening and data acquisition for single particle analysis made easy.
** BEAM **
- High brightness X-FEG electron gun
- Flexible accelerating voltage 80-200kv
** RESOLUTION **
- Information Limit: 0.23 nm (tilt <= 0), 0.34 nm (±70° tilt)
- Contrast at high defocus(Thon rings) : Thon rings visible beyond a spatial frequency of 2.7 nm-1
(corresponding to 0.37 nm resolution) in the rotationally averaged power spectrum of an image of a PtIr specimen
at – 2 mm defocus.
– Transmission Loss Measurement : Transmission loss <= 5% per 24 hr
– Typical achievable structural resolution near 2.5–3.2 Å for biological samples in practice
** DETECTORS **
– Falcon 4 camera
– Ceta-D camera
** STAGE **
- Compustage : Mark I
– Compustage Measuring System : Micro E
– Motion controller : TSC
– Movement range : +- 1000um
– Stage Tilt : +-70 degrees
– Fixed Holder : Cryo Single Tilt Holder
** APEERTURE**
– 3 Moterized Aperture Mechanisms
** OJECTIVE LENS TYPE**
– Cryo Twin Lens
** ACCESSORIES **

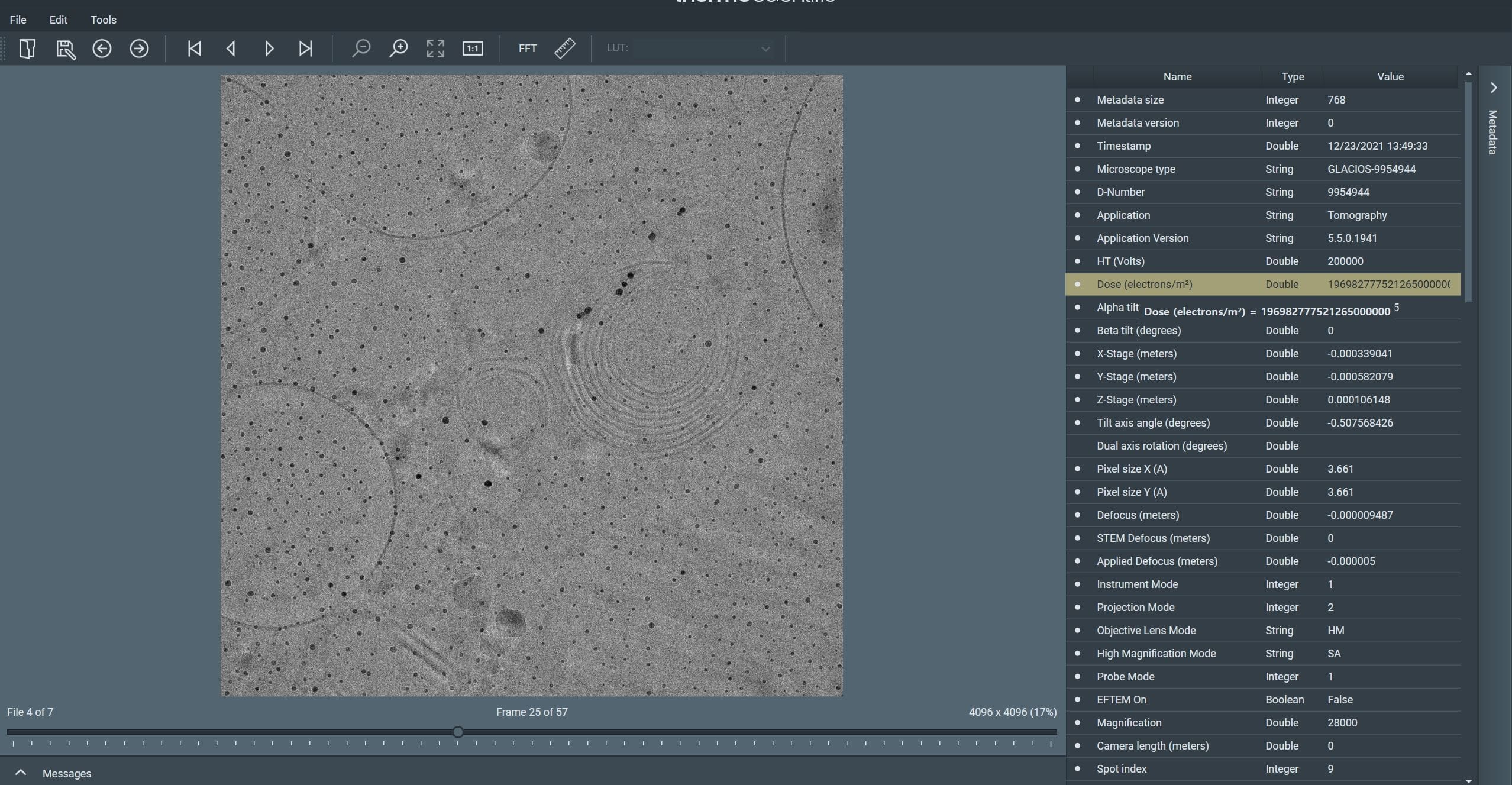

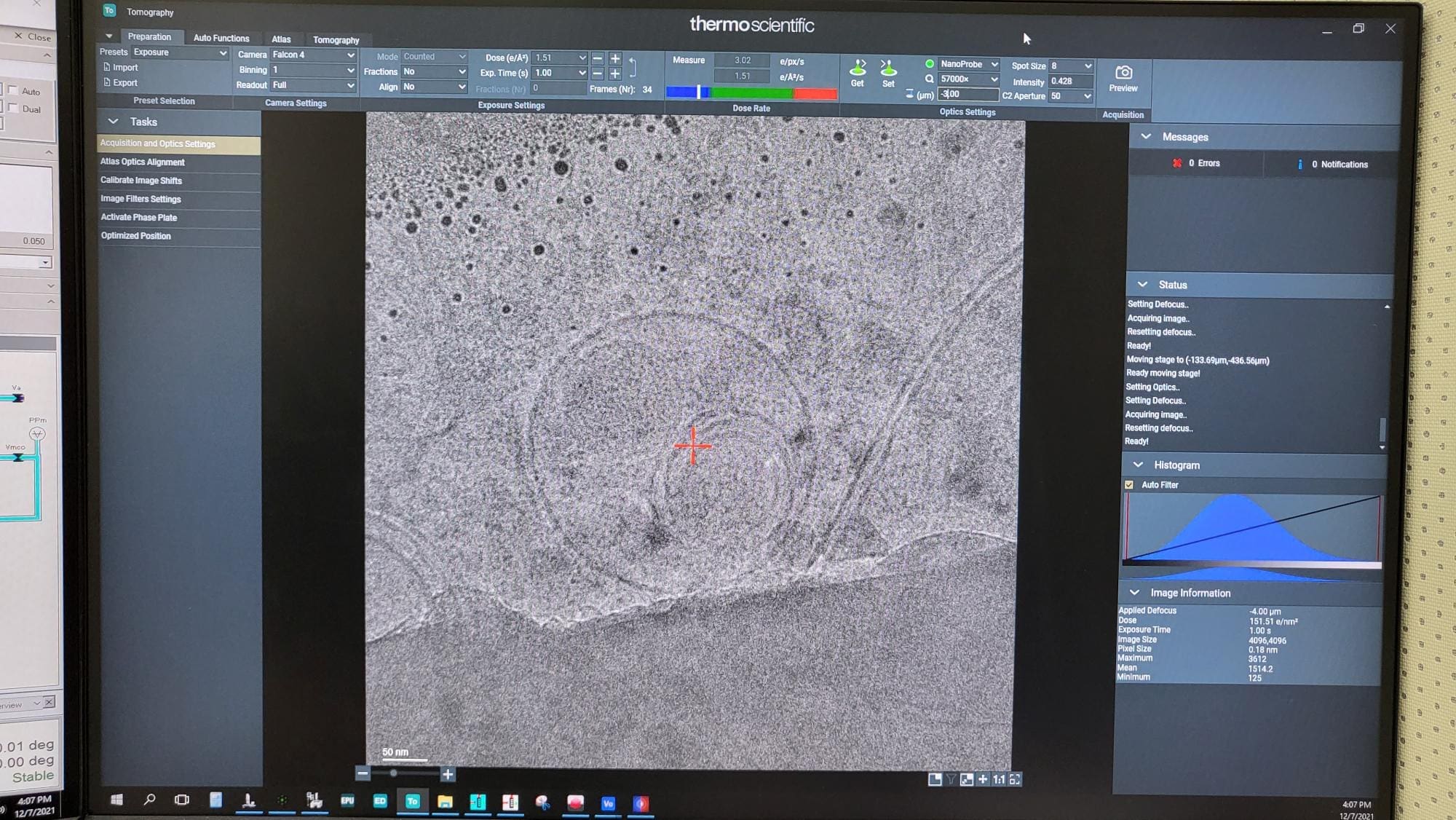

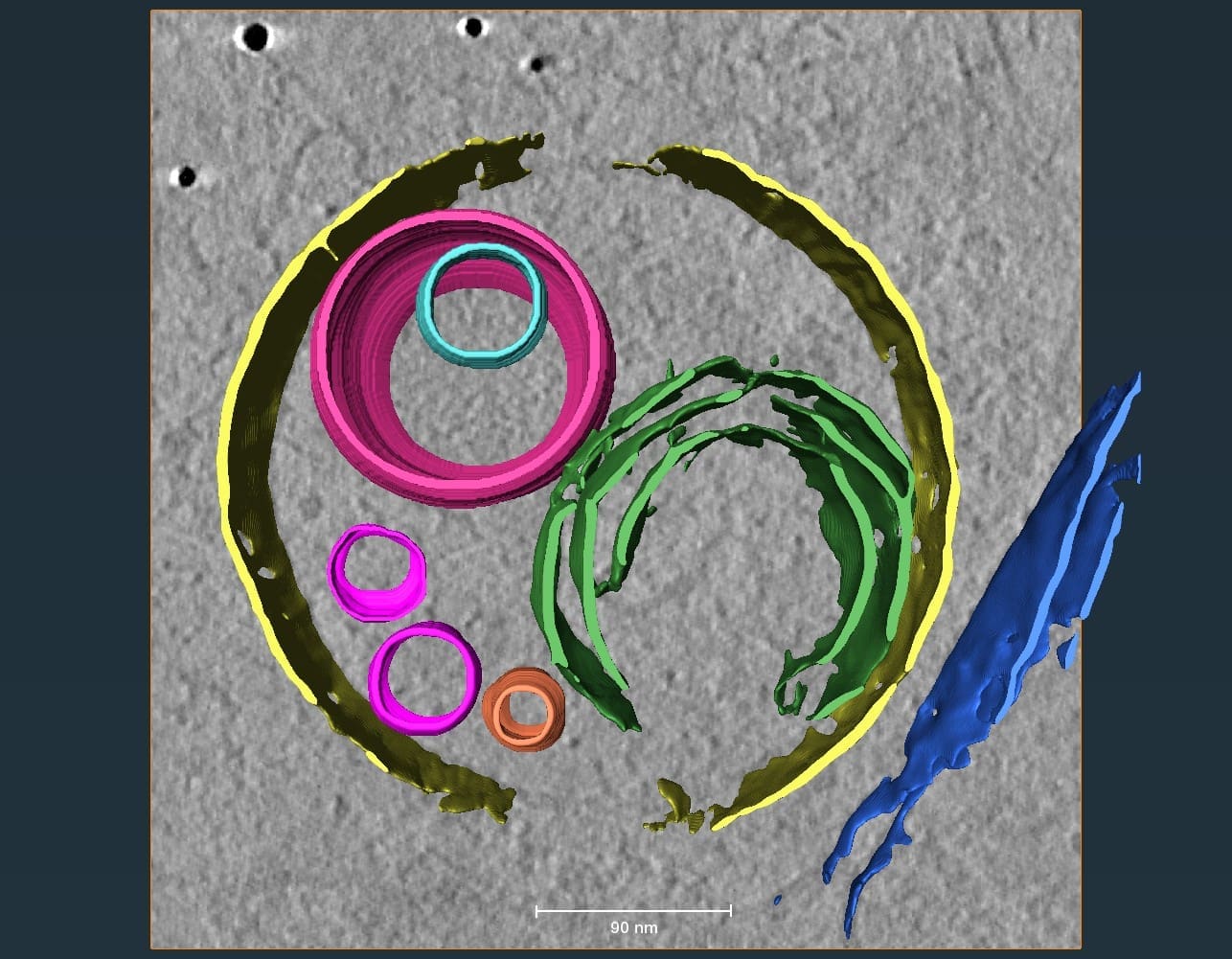

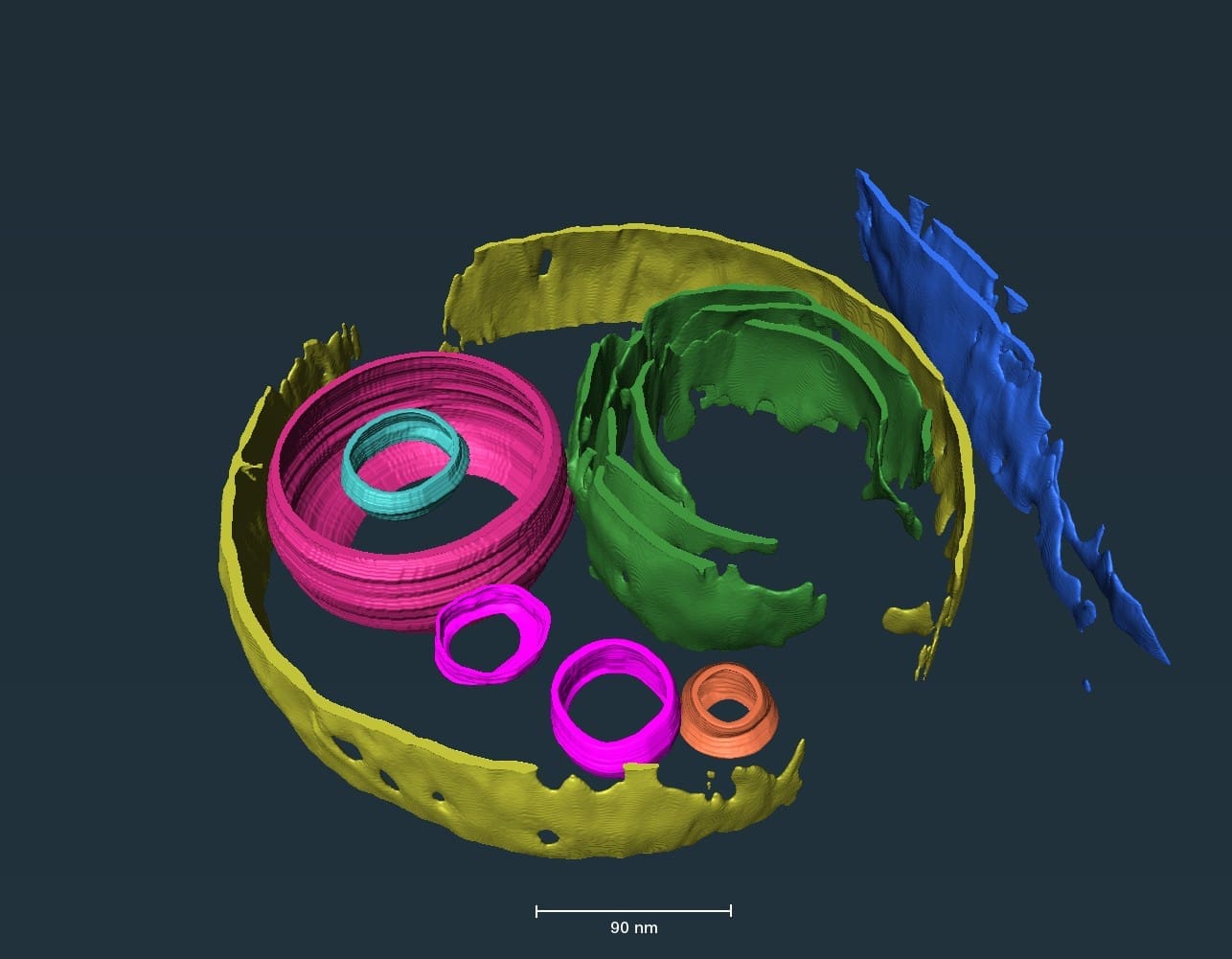

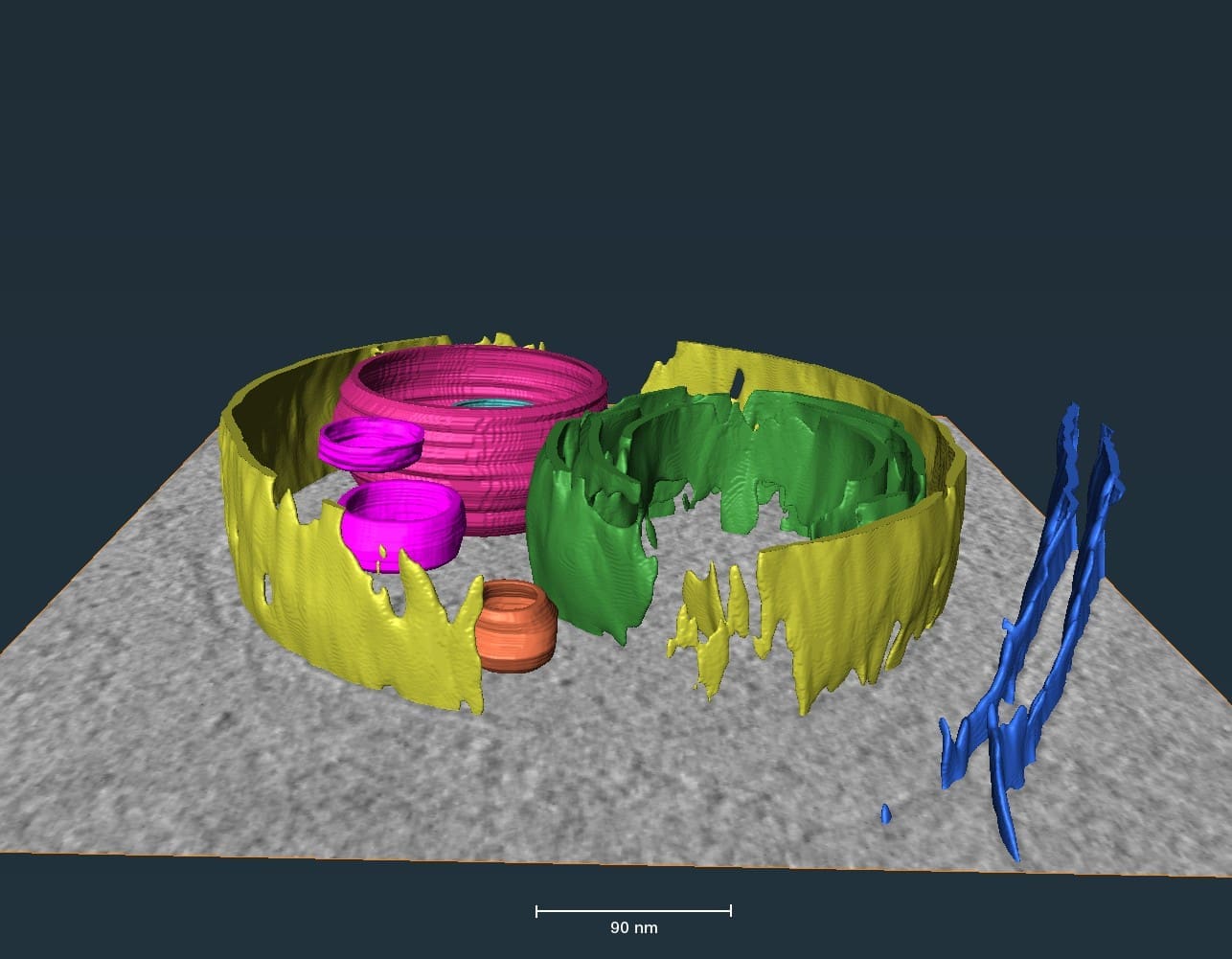

– Tomography
– Low Dose
– Phase Plate Type II (Max 90mA)
** CONDITION **
- Autoloading errors due to damage to the ceramic pins in the autoloader's back-docker. Issue will be resolve during reconditionning.
