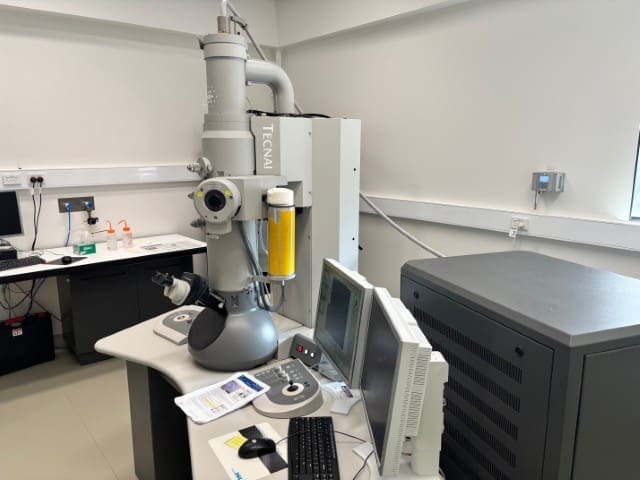

The Tecnai G12 Spirit TWIN transmission electron microscope (TEM) is a 120 kV TEM primarily used for biological sections, nanoparticles and negative stained samples. It has cryo-capabilities with the FEI Low Dose module as well as the electron tomography module. It has a Parfocal Magnification Series and TEM Scripting.
** BEAM **
– Type of emitter LaB6 filament
– Acceleration voltage range 20-120 kV
** RESOLUTION **
– Point resolution: 0.344nm
– Line resolution: 0.204nm
** DETECTORS **
– FEI Eagle 4k HS 200kV CCD camera
** STAGE **
– Movement range, tilt angle, axes
– Compustage range: X and Y can travel +/- 1000um
Tilt +/- 70o
** ACCESSORIES **
– Cryo Box 120/200 kV
– Low-dose Exposure Technique
– Electron Tomography Software Module and compustage.
– CCD Interface Flange to go with the FEI Eagle 4k HS 200kV CCD camera
– SA Aperture System
– TMP and TMP Vacuum Software
– 19” Accessory Cabinet
– Support PC
– 20” LCD Monitor
– Chiller
– Mains matching transformer
– Standard sample holder
** CONDITION **
Has been continuously maintained under a preventative maintenance contract until 15/08/2025
